Tipper Truck introduction
Classification of HOWO dump trucks:
1. According to the chassis carrying capacity, they can be divided into light truck series dump trucks, medium ton series dump trucks, and large ton series dump trucks;
2. According to the driving form, it can be divided into different series of vehicle models such as single axle self dumping, double axle self dumping, front four rear eight self dumping, front four rear ten, etc;
3. According to the different unloading hydraulic lifting mechanisms, it can be divided into single top self dumping and double top self dumping.
Tipper Truck parameter
|
Cab
|
HW76 long cab, with one sleeper, with air conditioner
|
|
Engine
|
SINOTRUK brand,WD416.47, 371hp, EUROII emission standard
|
|
Transmission
|
HW19710, Nu clearance: 1900Nm
|
|
Driving Axle
|
AC16, Casting steel axle, double driving axle, rated payload of each axle: 16tons
|
|
Front Axle
|
HF9, with disc brake
|
|
Steering
|
ZF8118, hydraulic steering with power assistance
|
|
Tires
|
12.00R20 radial tire
|
|
Wheel base (mm)
|
2800+1350+1350
|
|
Front/rear overhang (mm)
|
1500/1670
|
|
Approach/Departure angle (°)
|
19/26
|
|
Maximum driving speed (km/h)
|
75
|
|
Steel thickness of Cargo
body (mm) |
Floor: 10
Side: 8 |
|
Lift of Carriage
|
Front lift,HYVA 169 cylinder
|
|
Loading capacity (kg)
|
50000
|
|
Cargo body size (mm)
|
6200×2300×1300
|
Tipper Truck picture

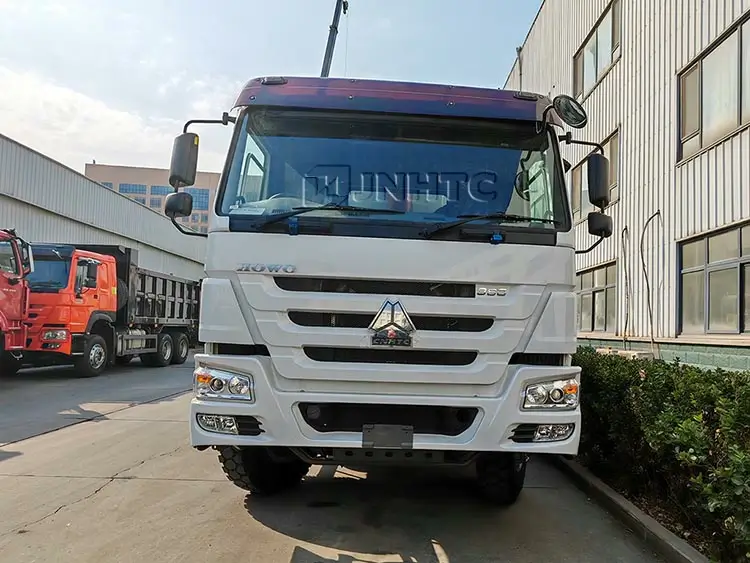

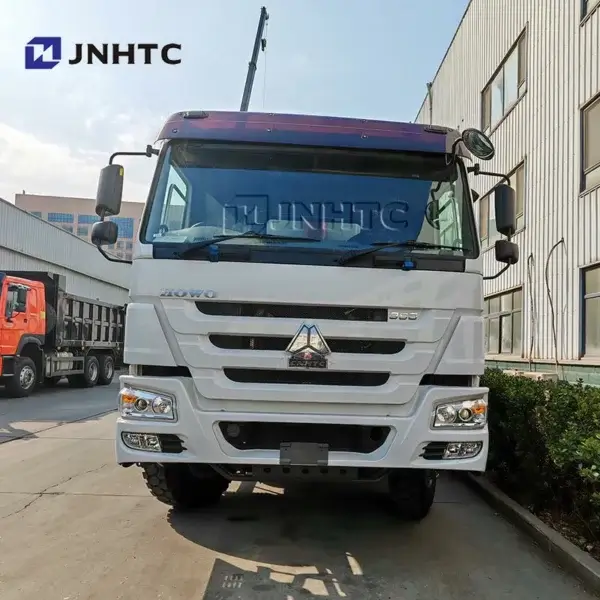

Tipper Truck front view

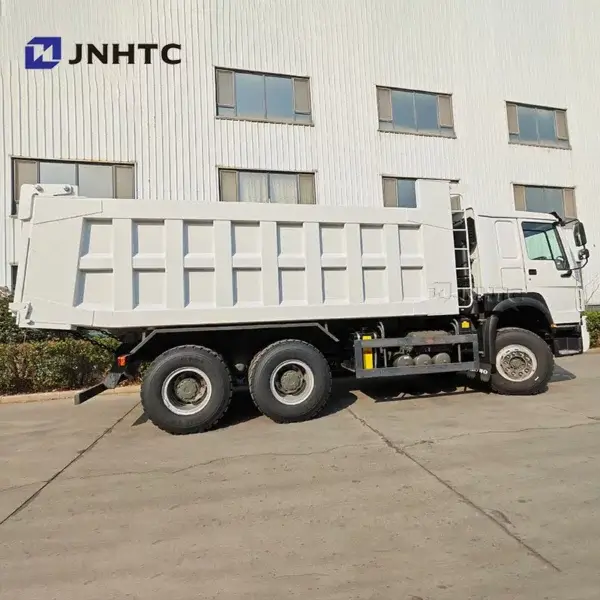

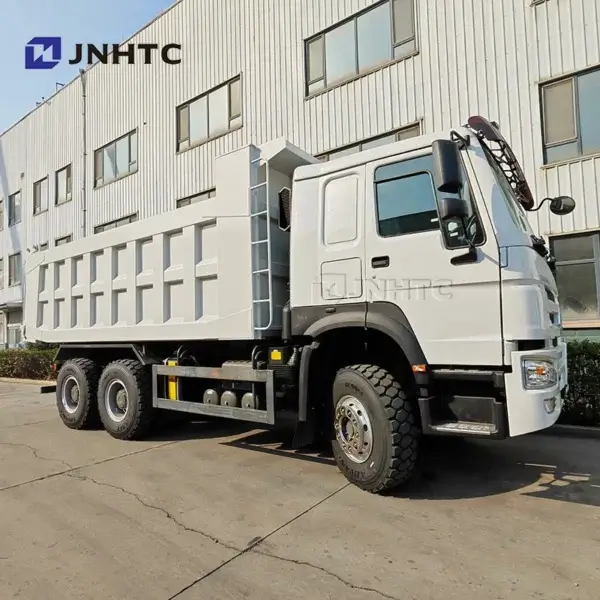

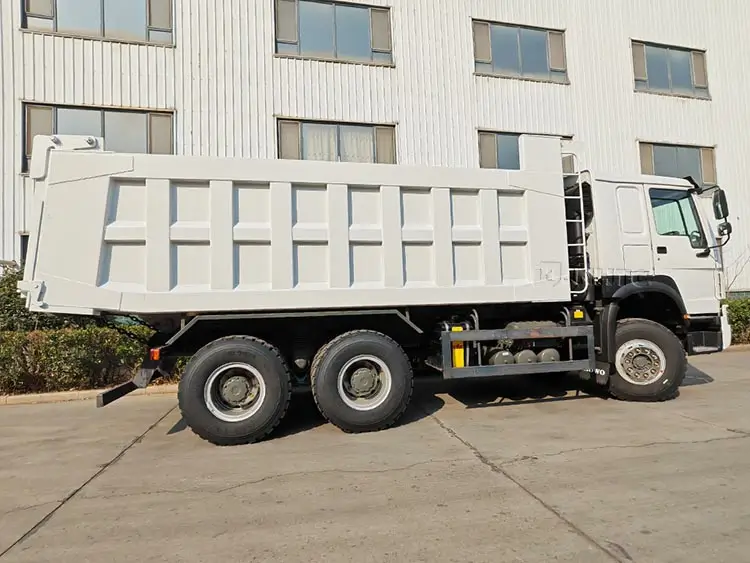

Tipper Truck side view
Tipper Truck side view
Tipper Truck rear view
Tipper Truck rear view
