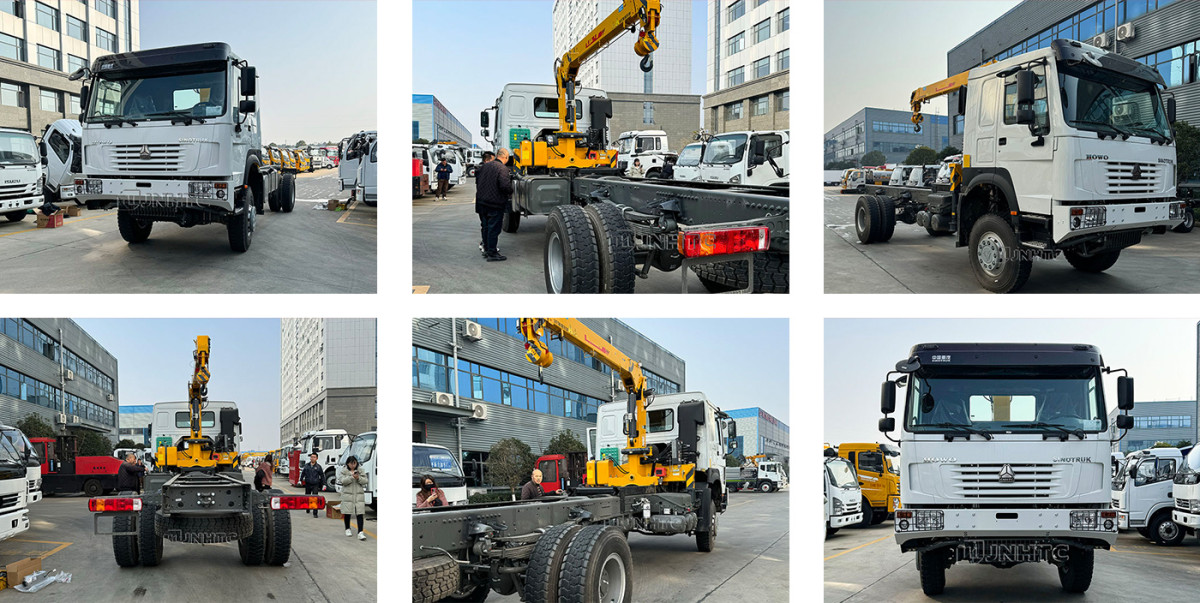

| Name | HOWO CARGO TRUCK WITH CRANE | |
| Drive type | 4×4 | |
| Kerb mass (kg) | 12500 | |
| Rated loading capacity(kg) | — | |
| Total mass(kg) | 25000 | |
| Max. speed (km/h) | 75 | |
| Min. turning circle (m) | 18 | |
| Approach/Departure(°) | 16/70 | |
| Max. gradeability (%) | 60 | |
| Appearance dimensions (mm) | 12000×2500×3450 | |
| Wheel base (mm) | 4600+1350 | |
| Overhang(front/rear) | 1500/725 | |
| Track width (mm) (front/rear) | 2022/2041 | |
| Engine | CNHTC Engine,1WD615.47,371hp E-II | |
| Rated output power | 309kw | |
| Torque(N.m r. p. m) | 1820/1100-1500 | |
| Displacement(L) | 9.726 | |
| Fuel tank capacity (L) | 400L | |
| Tyre: | 12.00R20 10+1pc | |
| Clutch | φ430 diaphragm spring | |
| Gearbox | Transmission | HW19710, 10 forward&2 reverse Manual |
| Front axle | STR | |
| Drive axle | ST16 ratio 4.8 | |
| Steering | ZF8118 (left-hand drive) | |
| Brake | Service brake | With dual-circuit compressed air brake |
| Park brake | Power spring brake acting on front & rear wheel | |
| Auxiliary brake | Engine exhaust valve brake | |
| Cab | HW76 Cab with Single sleeper A/C | |
| With Wind scooper and air guide sleeve | ||
| Battery | 165AH | |
| Cargo Carriage Internal Dimensions | 7200x2400x600(LxWxH)mm | |
| Steel thickness of Carriage: | Floor: 3mm, Side:1.5mm | |
| Crane | 12tons straight arm crane | |
| Delivery date | 40 working days after receiving the down payment. | |
Whether you’re in construction, logistics or any industry that requires lifting and moving materials, our cranes have you covered.
Truck-mounted cranes offer excellent mobility, allowing you to easily enter tight Spaces and hard-to-reach areas. Its compact design and flexible steering make it ideal for urban environments and restricted workplaces.
Cranes are highly versatile and capable of handling a wide range of loads and materials. From construction equipment to pallets and containers, it can lift and transport everything you need. Cranes come with a variety of accessories and fittings, including hooks, cables and spares, allowing you to customize them to your specific handling requirements.
Designed with safety in mind, truck-mounted cranes feature advanced safety systems such as load limiter, anti-swing control and emergency brakes to ensure maximum protection for operators and loads. The crane is also easy to operate, with a user-friendly control panel and intuitive joystick controls that allow for precise movement and positioning.
